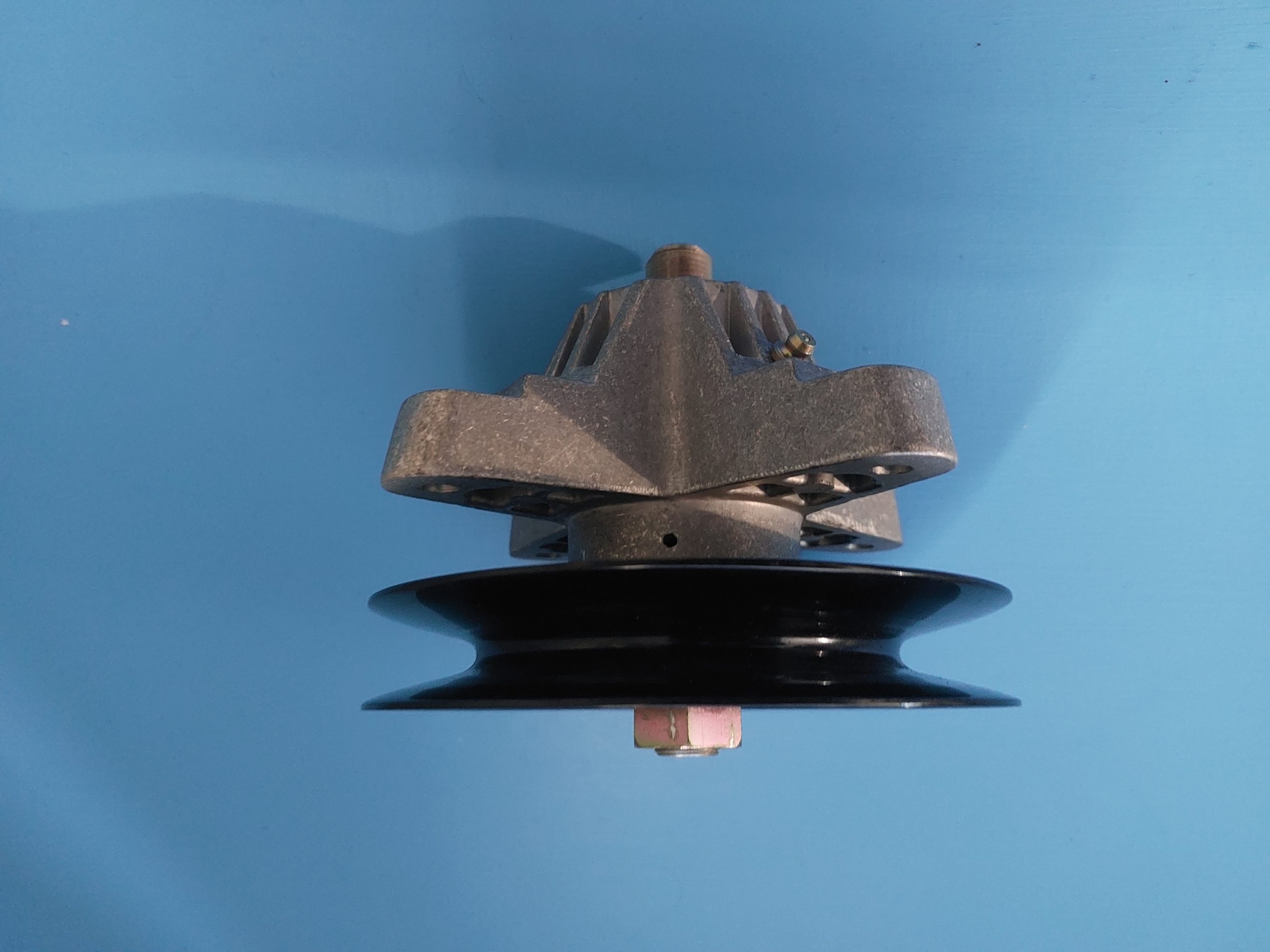

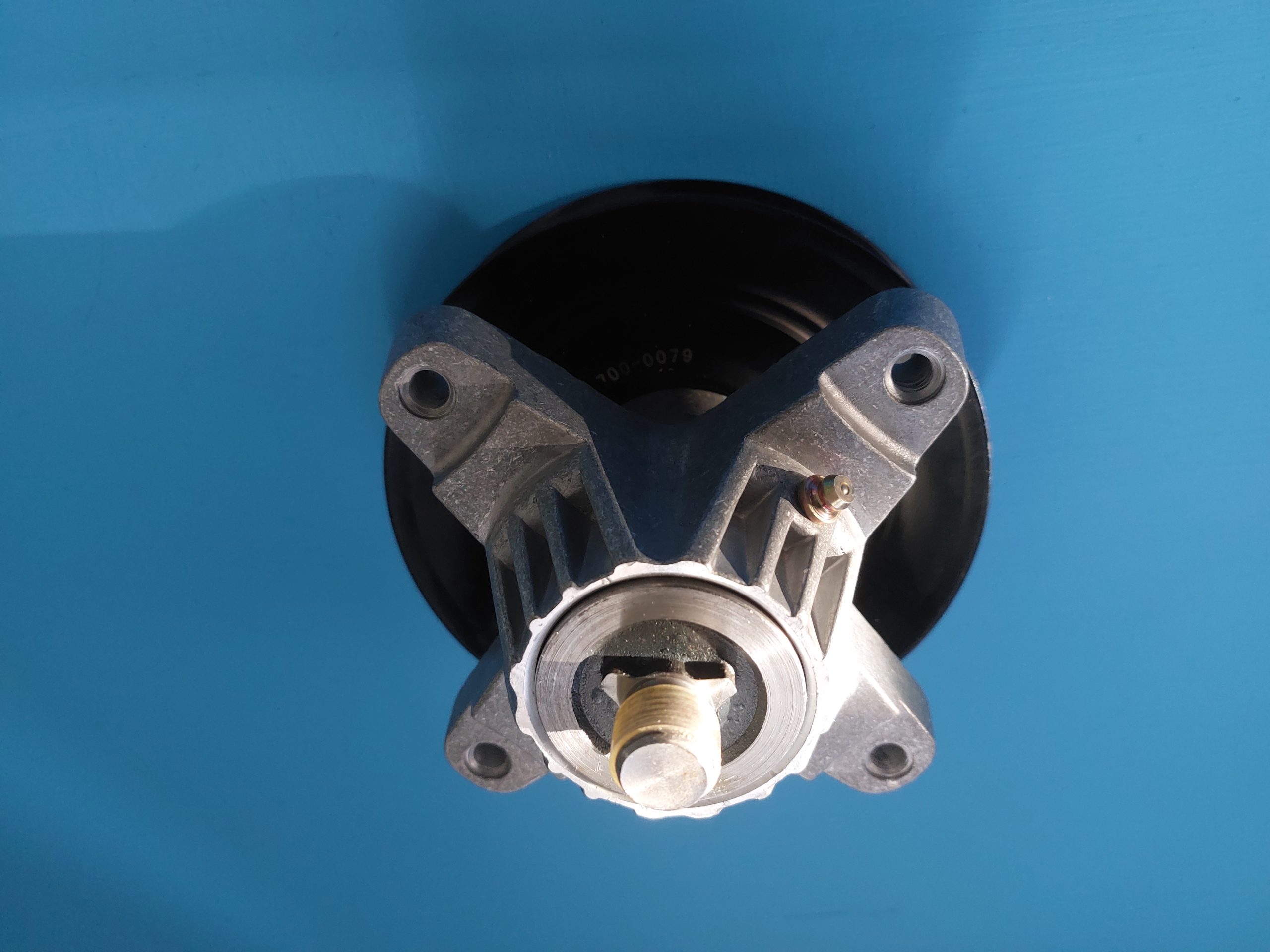

MTD, TROY BILT, CUB CADET Spindle Assembly- New SHORT Version 42 inch Decks

MTD, TROY BILT, CUB CADET Spindle Assembly- 4 Bolt, New Short Version 42 inch Decks

This is for one spindle assembly, if you want two just add two to your shopping chart.

This spindle assembly’s fits a lot of different machines, below is a huge list of the part numbers and models it fits.

Blades measurements are below

Centre Hole Diameter 6 Point Star
Body Length 79mm
Shaft Length 122mm
Mountings 4
Pulley OD 145mm

Please note does not come with mounting bolts, can supply if needed. Also the mounting hole are not threaded as if using the proper bolts the are SELF TAPPING thread bolts.

OEM Part No: 9180574, 9180565, 6180574, 6180565, 6180688

Fits MTD models 13AD624G401, 13AG618G706, 13AJ609G766, 13AM004F671, 13AM604F671, 13AM604G671, 13AN604F, 13AN604F671, 13AP608G129, 13AT604G755, 13AU604G671.

Fits Troy Bilt models 13AJ609G766

Any Questions just ask.

MT-SPIA-42NS 122mm shat length
