MTD Idler Pulley FLAT 81mm OD x 30mm Height

MTD Idler Pulley FLAT 81mm OD x 30mm Height

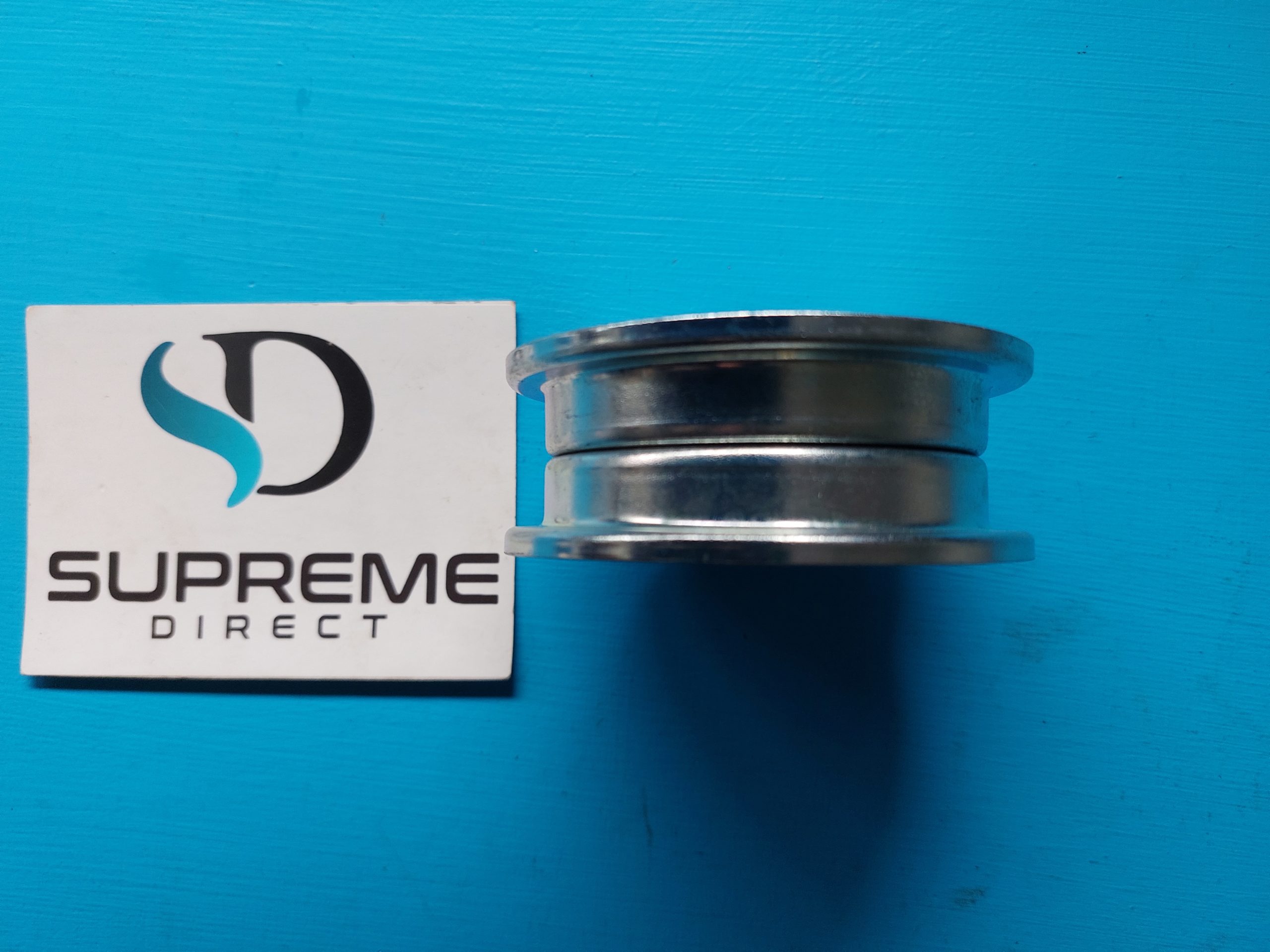

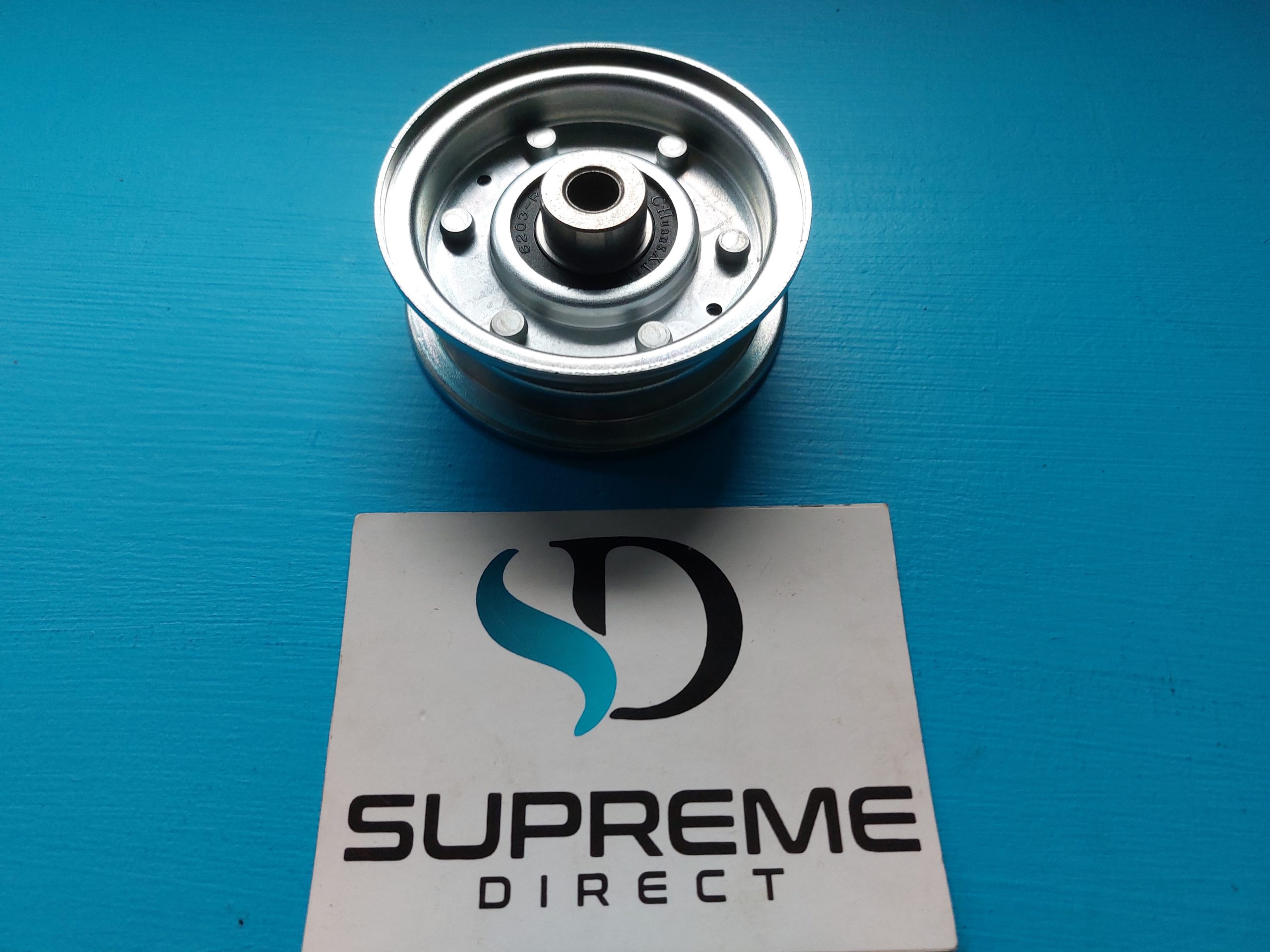

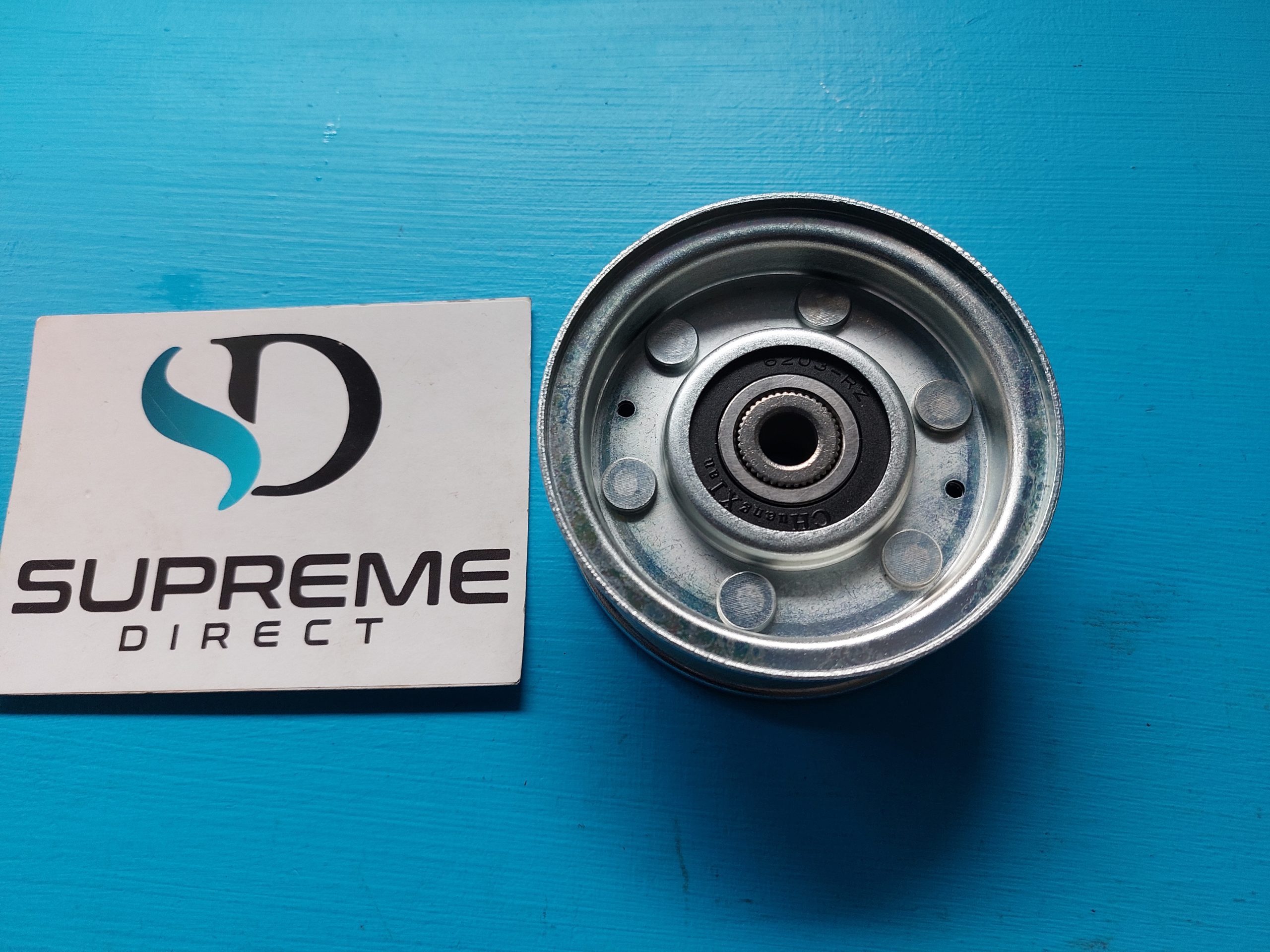

This is for one flat idler pulley assembly assembly.

So the the back flat edge of the belt runs againts the flat of this pulley, this is not a V pulley etc..

This pulley fits a lot of different machines, below is the pulleys sizes etc..

Pulley measurements are below

Centre Hole Diameter 9.5mm (3/8 bolt)
Outside Diameter 98mm
Pulley Height 32mm

OEM Part No: 7563054A, 7560217

Fits Massey Ferguson models 13AV51CE654

Fits Rover models LE145H, LN200H, 13HT71KN378, 13HT71KN678, 13IM71KE678

Fits Cub Cadet models CC1000RD, CC1020RD, 13AB51CJ630, 13AE51CN630, 13AE51CN654, 13AP51CJ630

Fits MTD 500 series NX09 Autodrive models JE145A, HE5150K, LE145H, LN165H, LN200H, 13AA508D670, 13AA508E670, 13AB51CJ630, 13AD514E671, 13AE51CE630, 13AE51CN630, 13AE51CN654, 13AF51GN690, 13AM483E670, 13AM488E670, 13AM498N670, 13AP518N670, 13AP51CJ630, 13AT514N643, 13AV51CE654, 13BD514E671, 13BE514N671, 13BP514N671, 13BT514N671, 13BW506N696, 13CD50GN690, 13CF51GN690, 13CG514E671, 13CI514E671, 13CJ50GN690, 13CP798N678, 13ED50GE690, 13HM71KE678N, 13HN71KN678N, 13IM71KE378, 13IN71KN378, 13IT71KN378, 13RN71KN678, 13RN71KN678N, 13RT71KN678, 13XT514N643.

Any Questions just ask.
