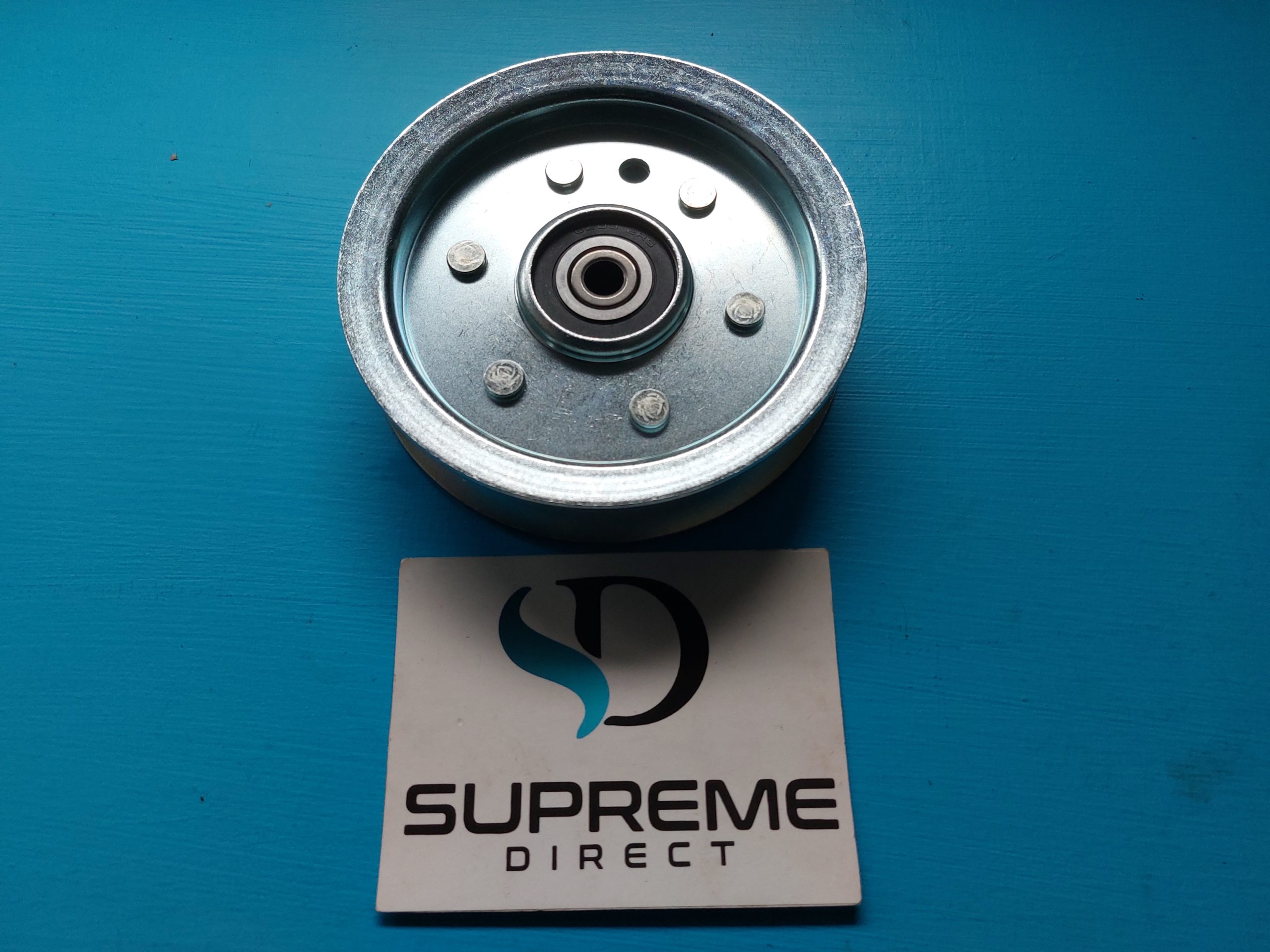

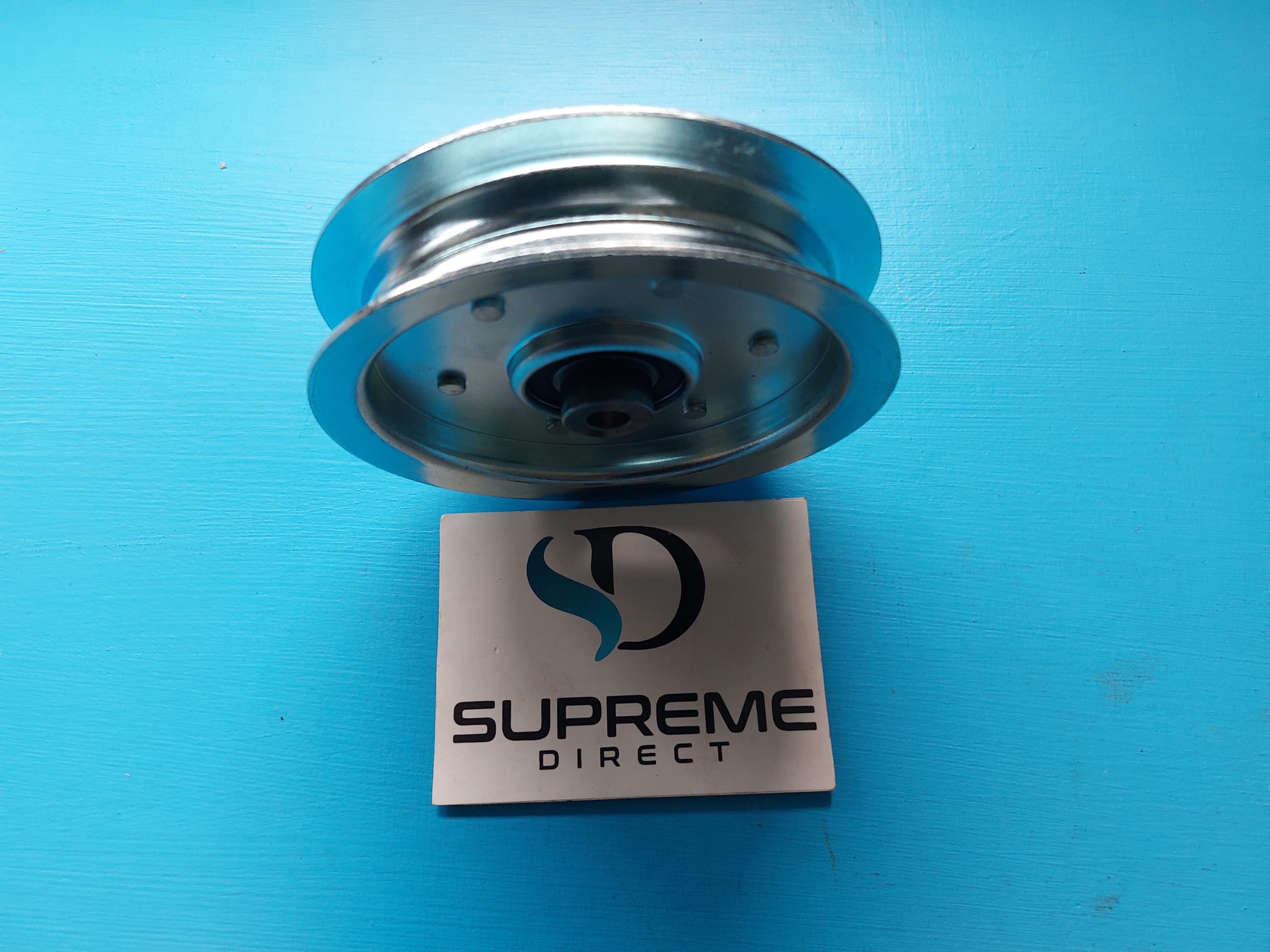

MTD Idler Pulley FLAT 123mm OD x 28mm Height

MTD Idler Pulley FLAT 123mm OD x 28mm Height

Auction is for one flat idler pulley assembly assembly.

So the the back flat edge of the belt runs againts the flat of this pulley, this is not a V pulley etc..

This pulley fits a lot of different machines, below is the pulleys sizes etc..

Centre Hole Diameter 9.5mm (3/8 bolt)
Outside Diameter 123mm
Pulley Height 28mm

OEM Part No: 532102403X, 74805029, 75604129, 75604129B, 75605042, 75308171, 78308389, 95604129, 95604129B, 95605042

Fits Cub Cadet models GT2550, GTX1054, i1042, i1046, i1050, LTX1046, LX1042, Pro Z, RZTS42, SX48, 13BP91AT010, 13AE11CG395, 13AP11CH630, 13AP91AP330, 13AP91AS330, 13AQ92AK330, 13AX11CG330, 13AX11CG630, 13AX11CG710, 13AX11CH710, 13AX91AG330, 13AX91AS330, 13BP91AS330, 13BP93WS333, 13WF93AT210, 13WF938T210, 13WX91AS010, 14A2E7P330, 14A2E7P630, 14AZ94AK330, 17AE2ACG330, 17AE2ACG630, 17AF2BDT330, 17AF9BKH710, 17AF9BKH756, 17AF9BKP330, 17AFCBDT330, 17AF9KBKH756, 17AI2ACP695, 17AIDGJB010, 17ARCBDS330, 17BRCBDN330, 17BRCBDS330, 17RF9BKH756, i1042, 17WE9BKR010. 53AWEFJF330

Fits many MTD models HVT4200, LT175, 13A091WT333, 13A1762F670, 13A2756F306, 13A2762F318, 13A2765F06, 13A2765F306, 13A4616H790, 13A5791G670, 13A7771G670, 13AB604G671, 13AB765F306, 13AB765F344, 13AC762F729, 13AC762F370, 13AC762F670, 13AC76GF390, 13AD791G670, 13AE11CG395, 13AG601H729, 13AG618G706, 13AI762F670, 13AJ609G766, 13AK11BK710, 13AK11CK630, 13AL93GS319, 13AM762F765, 13AM76TF333, 13AM91WF333, 13AN601H729, 13AN771G729, 13AN772G, 13AN772G308, 13AN772G370, 13AN772G700, 13AN772S329, 13AN775G308, 13AN775H790, 13AN775S306, 13AN779G766, 13AN77GG390, 13AN77GS390, 13AN77KG011, 13AN91WS333, 13AO771G670, 13AO771H055, 13AO91WT333, 13AP11CH630, 13AP604G371, 13AP604G671, 13AP604H671, 13AP605H755, 13AP606H790, 13AP60TP090, 13AP60TP766, 13AP616H590, 13AP90YG371, 13AP90YP371, 13AP90YS371, 13AP91AP330, 13AP91AS330, 13AP91CS395, 13AP93AS330, 13AP93WS333, 13AQ92AK330, 13AT604G755

Any Questions just ask.

32.27$ (USD)

1 in stock
