JONSERED XD

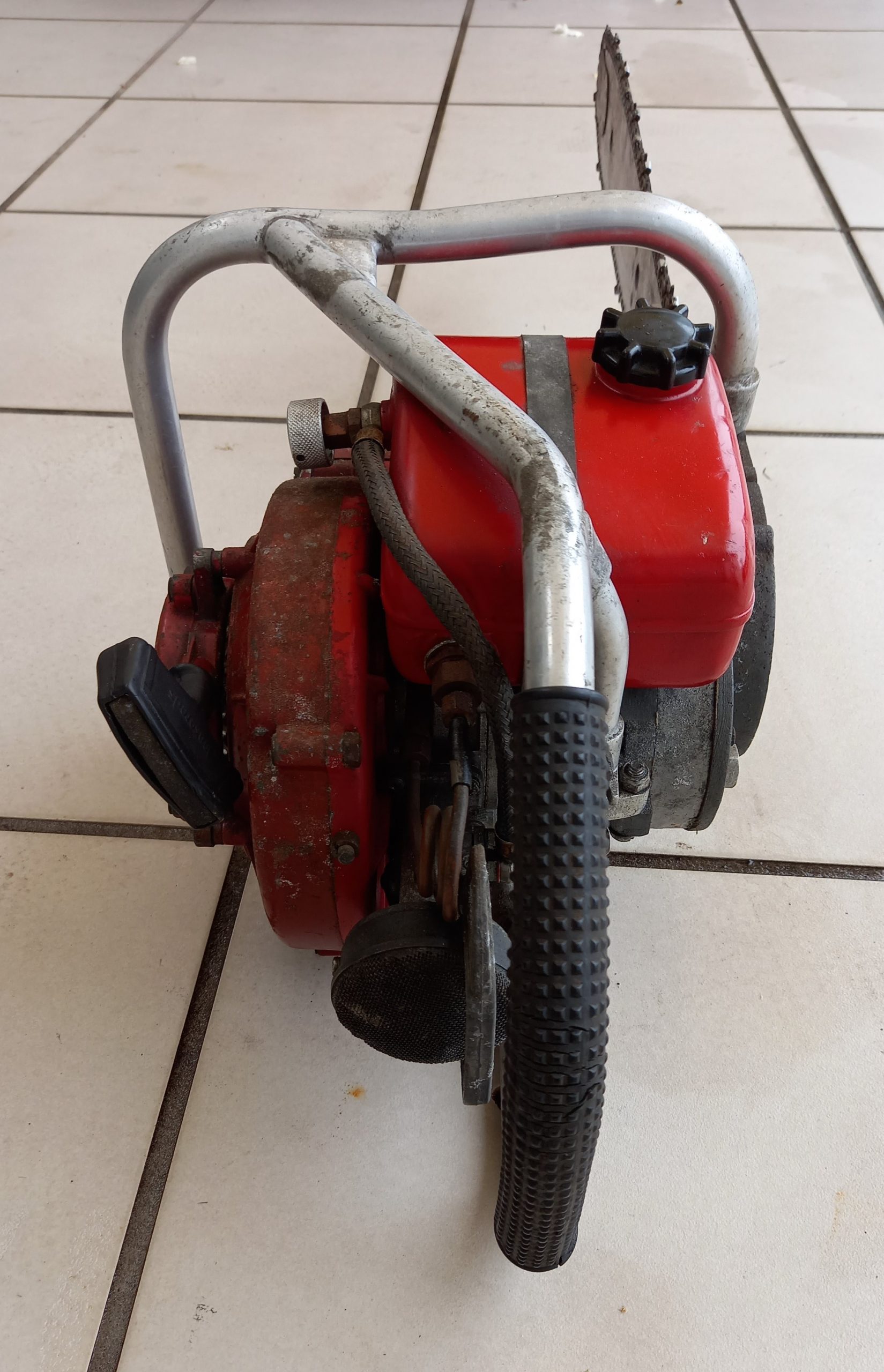

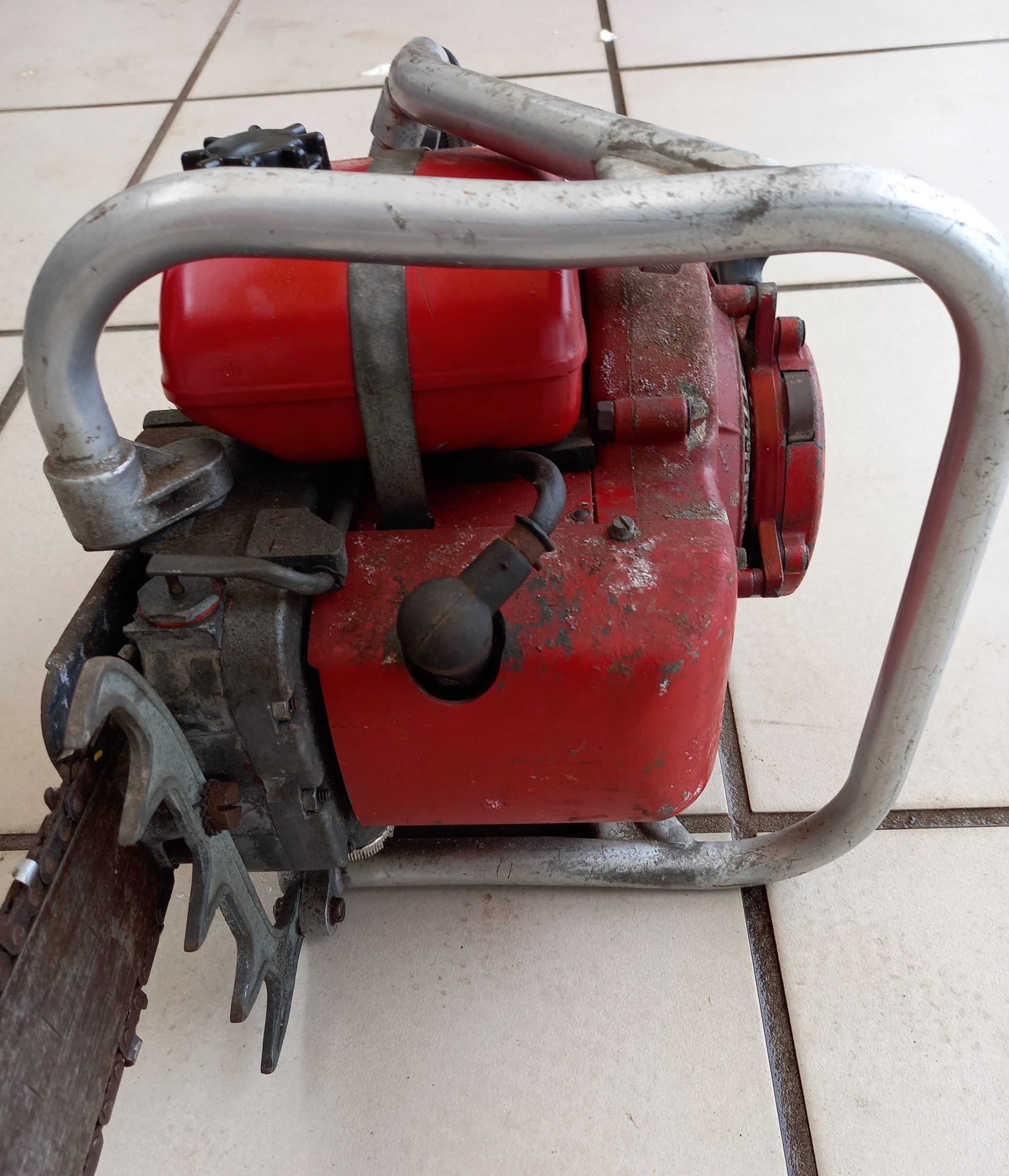

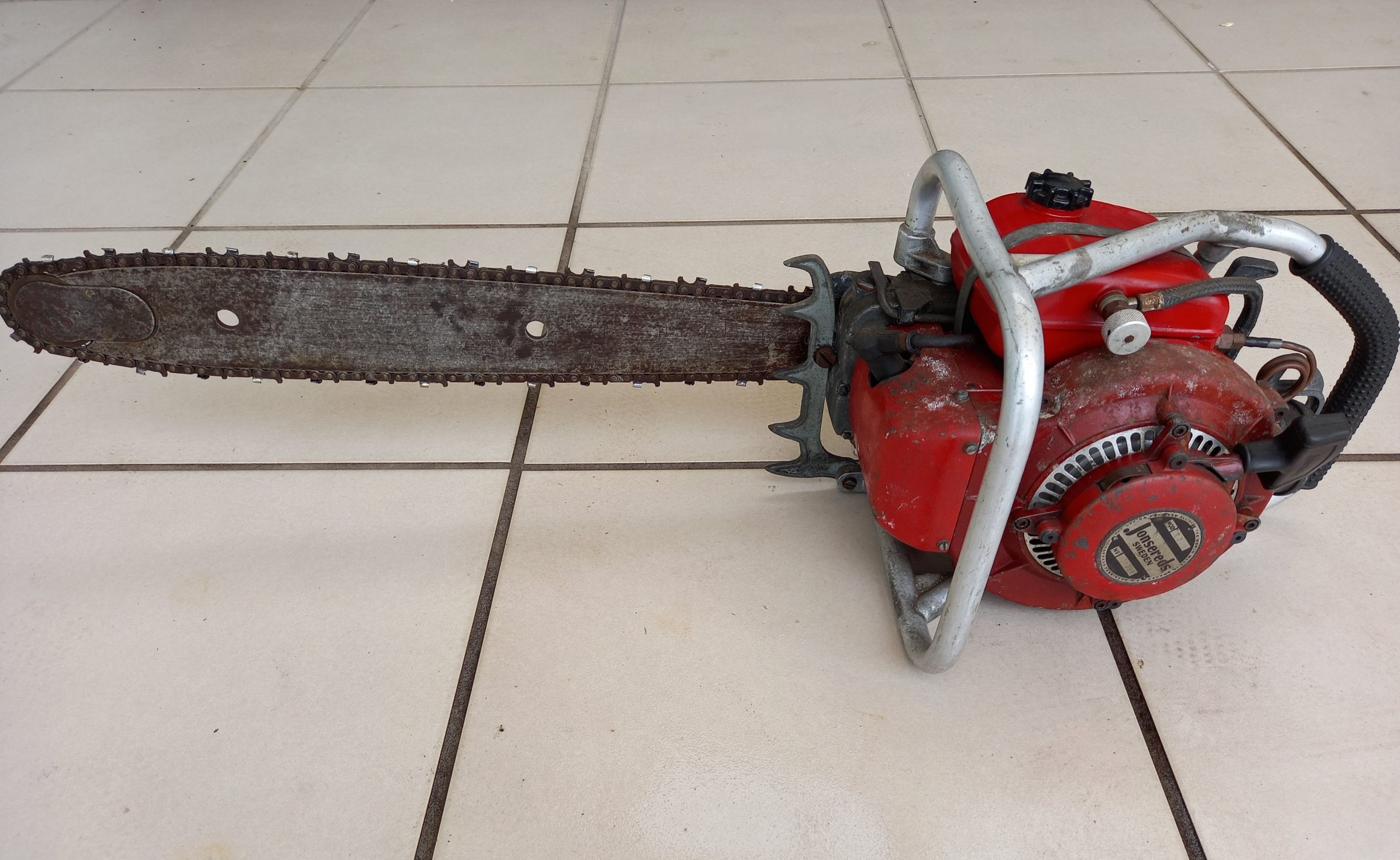

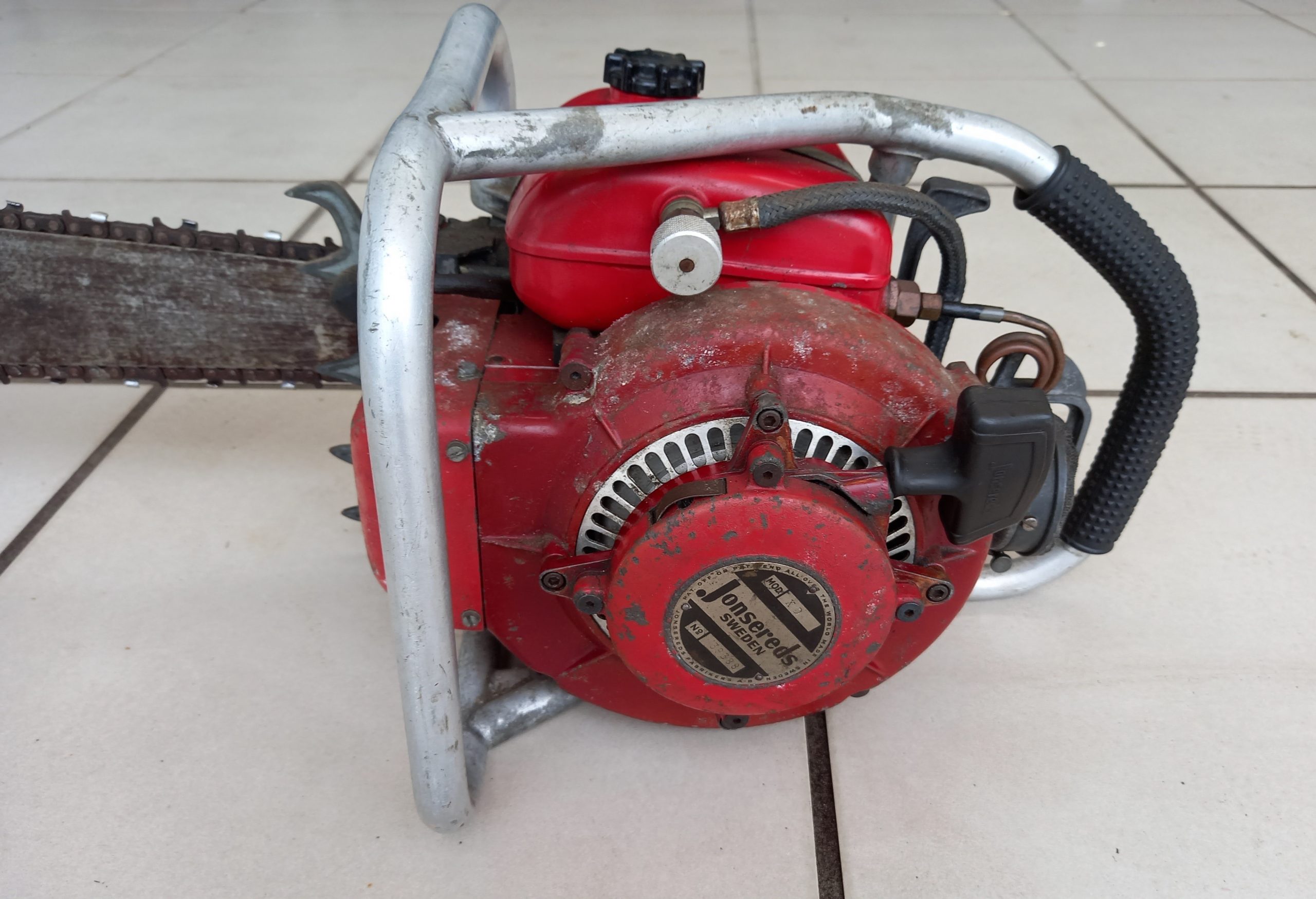

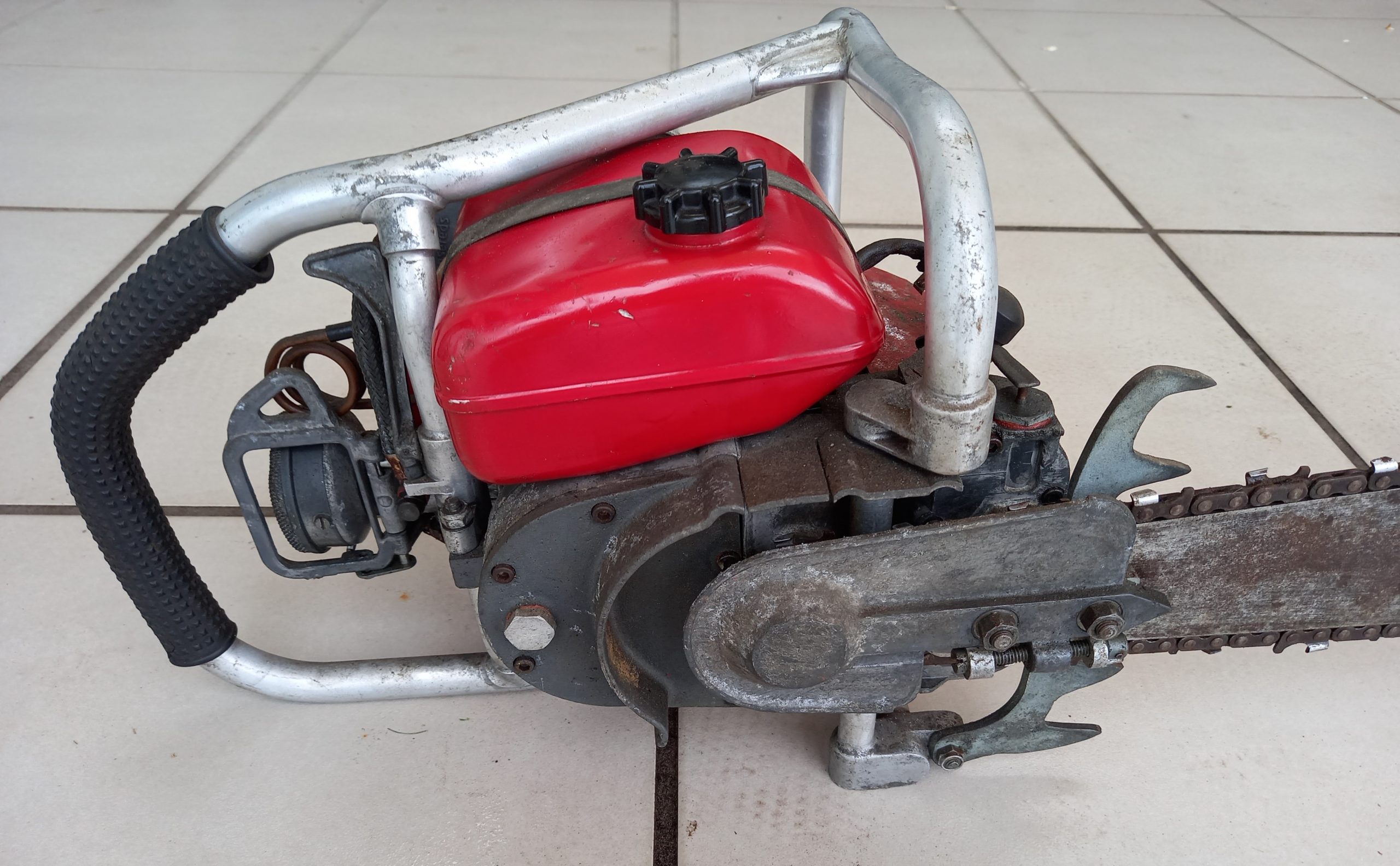

Jonsered XD Chainsaw

Sold as “Power Head” only

This saw is being sold as a “Collectors Item” as it has NO chain brake. Runs and idles well and has good compression.

The saw is in good condition for its age. It has no chain brake so is being sold as a power head only and is in all round good mechanical condition.

MANUFACTURED BY:		JONSEREDS FABRIKERS AB
		PARTILLE, SWEDEN
YEAR INTRODUCED:		1958
YEAR DISCONTINUED:		1962
ENGINE DISPLACEMENT:		85cc (5.18 cu. in.)
NUMBER OF CYLINDERS:		1
CYLINDER BORE:		52mm (2.04 in.)
PISTON STROKE:		40mm (1.57 in.)
CYLINDER TYPE:		Aluminum with chrome plated bore
INTAKE METHOD:		Rotary valve
MANUFACTURER ADVERTISED H.P.:		3.16kw @ 6650 rpm
WEIGHT:		10.9 kg with 48 cm bar & chain 23.14 lbs. with 19 in. bar & chain
CLUTCH:		Centrifugal
DRIVE TYPE:		Gear reduction
CONSTRUCTION:		Die cast magnesium
MAGNETO TYPE:		Stefa
CARBURETOR:		Injector
STARTER TYPE:		Automatic rewind
OIL PUMP:		Manual
MAXIMUM ENGINE RPM:		8,800
FUEL TANK CAPACITY:		1.2 litres (40.5 oz/)
