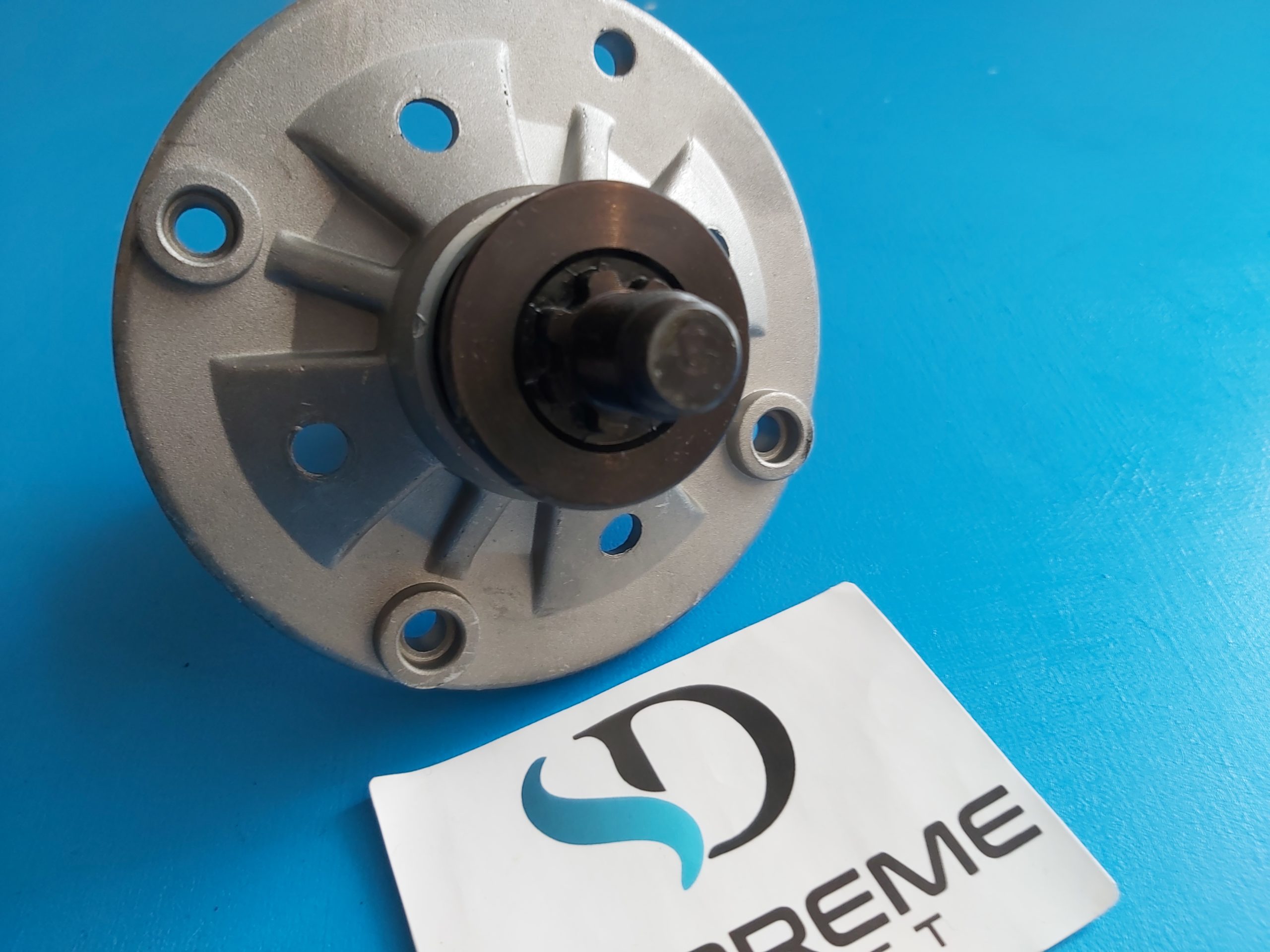

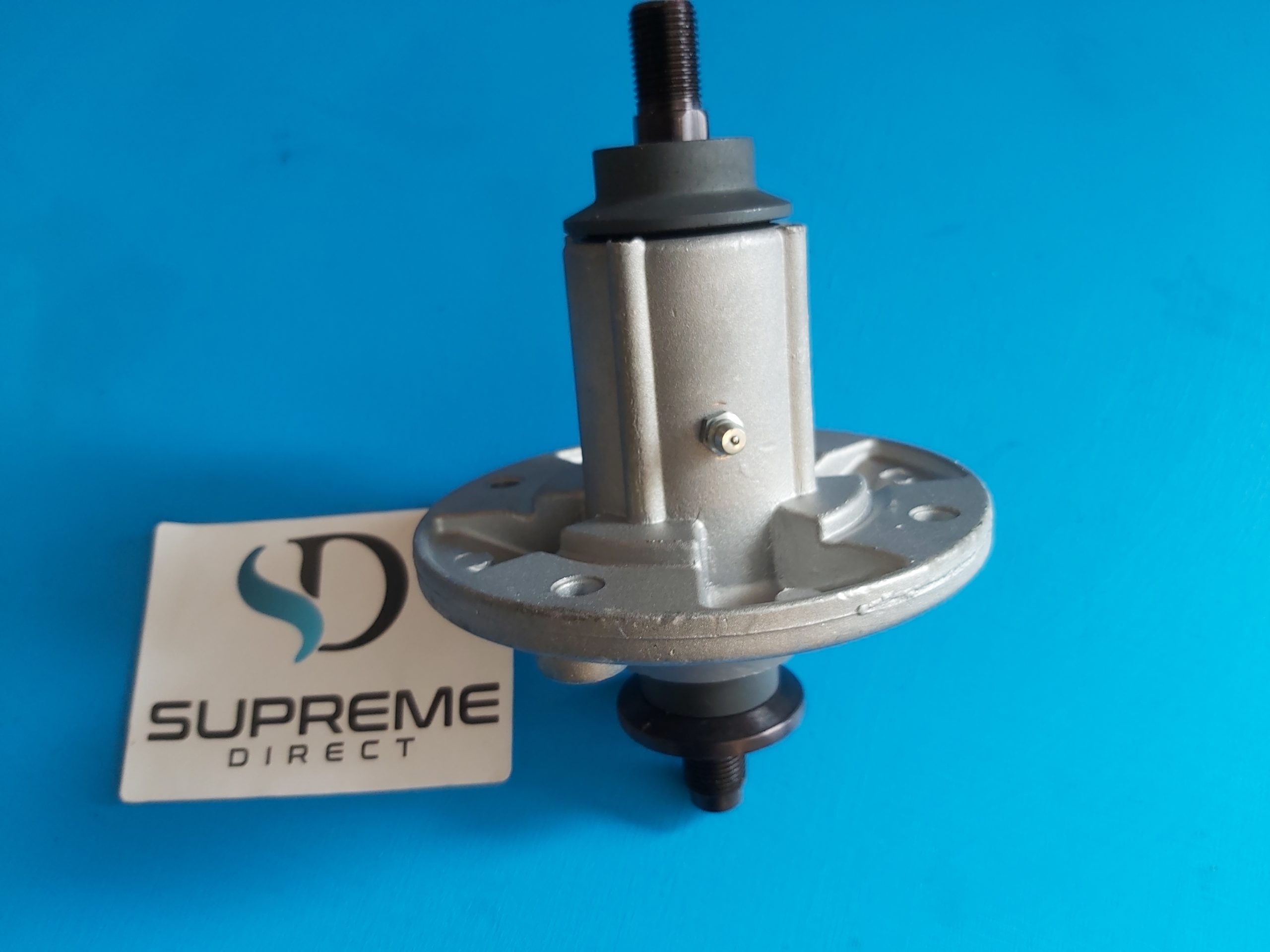

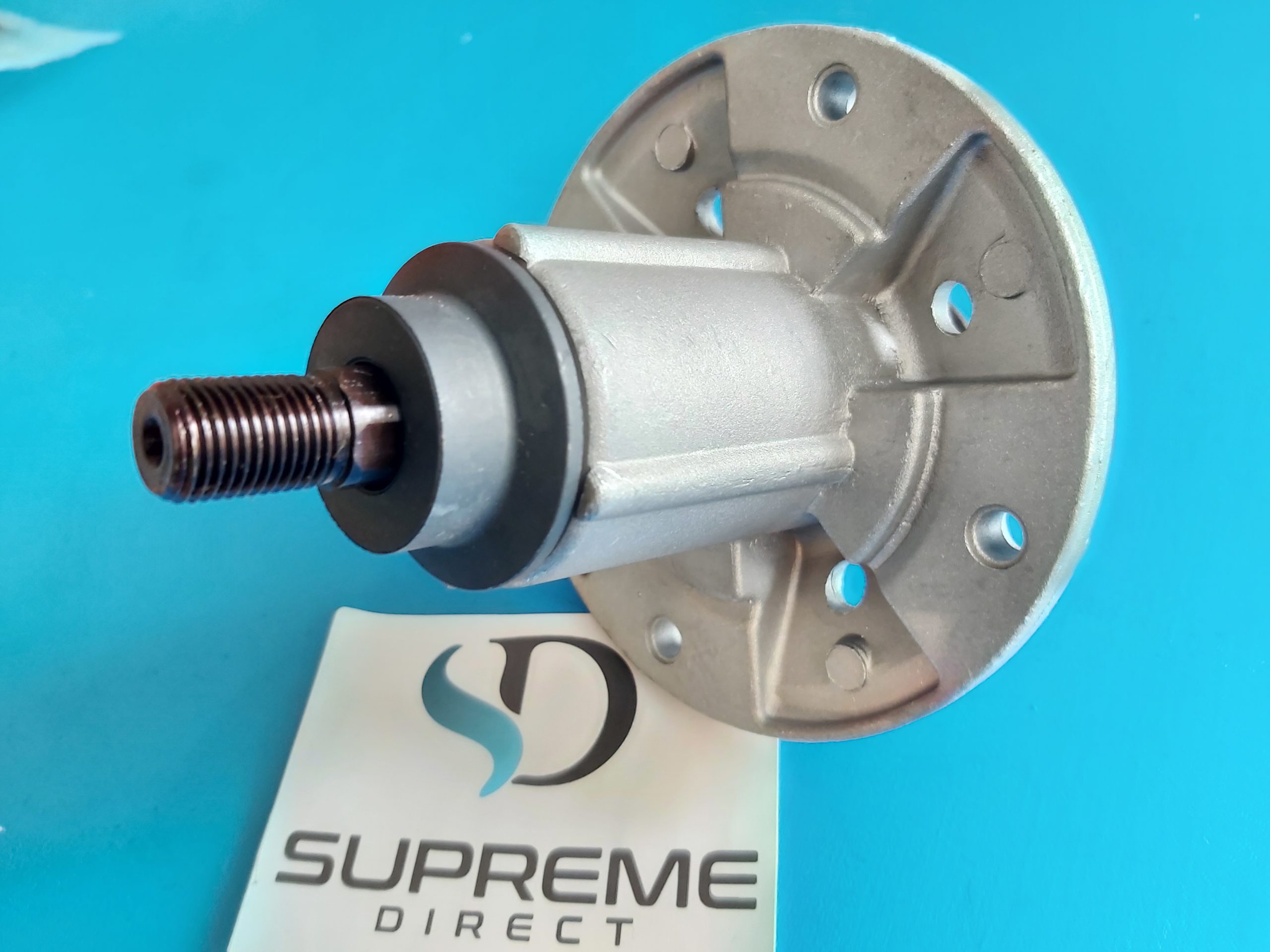

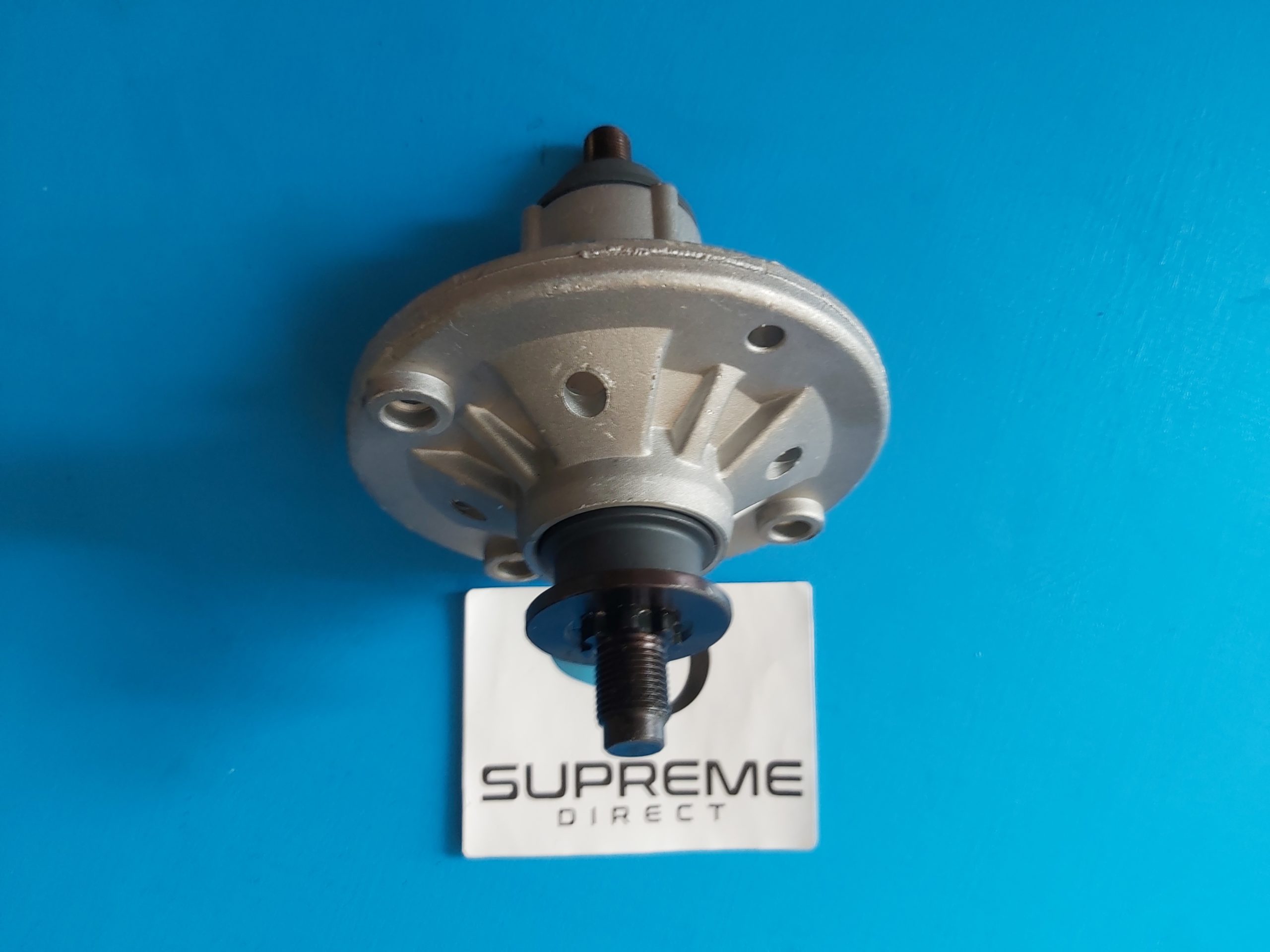

JOHN DEERE Spindle Assembly- LA, L, D, Series and X155R 42, 48 and 54 inch Decks

JOHN DEERE Spindle Assembly- LA, L, D, Series and X155R 42, 48 and 54 inch Decks

This is for one spindle assembly, if you want two just add two to your shopping chart.

This spindle assembly’s fits a lot of different machines, below is a huge list of the part numbers and models it fits.

Blades measurements are below

Centre Hole Diameter 7 Point Star
Body Length 94mm
Shaft Length 168mm
Blade Nut size 16mm
Mountings 4
Centre to Centre 107mm
Outside Diameter 127mm

Please note does not come with mounting bolts, can supply if needed. Also the mounting hole are not threaded as if using the proper bolts the are SELF TAPPING thread bolts.

Also please note that the blade nut size is approx 16mm please check your old one as there is also a 12mm thread version.

OEM Part No: GY20454, GY21098, GY20962

7 Point Star

Fits John Deere L100 & D100 series since 2006 with 7 point star 42″, 48″ & 54″ cut. 115, L102, L105, L115, L125, L135, L145, L155C, LA100, LA110, LA120, LA130, LA140, LA105, LA115, LA125, LA135, LA145, LA155, LA165, D100, D105, D110, D120, D125, D130, D140, D160, X155R.

Any Questions just ask.

JD-SPIN-L100 180mm shaft length
16mm blade nut size
